Continuing in Operation, Still Available for Supply
The ‘Dynanet’ product family is a range of PDH telecommunications products first launched by Nokia over 20 years ago. This equipment has proven to be incredibly reliable and dependable, extensively deployed by Operators, Utilities and Transport companies to provide resilient and highly available transmission networks.
A continuing challenge for public and private network owners is the ongoing maintenance of infrastructure systems to support their business needs. In many cases, it makes sense to continue to operate legacy systems which are still fulfilling unchanged requirements, rather than contemplate costly and time-consuming change-outs and replacements.
Keeping Customers Operational
@YellowsBestLtd seeks out new products and legacy equipment spares to assist with these aims. Recent enquiries have been fulfilled supplying refurbished and surplus stocks of equipment cards, as well as built-to-order cables and connectors to suit exact requirements.
There follows a few examples of items we have recently supplied. Also, our more extensive Definitive ‘Dynanet’ spares list here provides details of many items still available from surplus and refurbished stock. We would welcome any enquiries for the supply of similar or alternative parts, or support services to provide hardware repairs. Please get in touch; we look forward to hearing from you!
Many business operations depend on the security delivered by professional standard CCTV cameras, offering reliability, availability and a wide range of advanced features for mission-critical surveillance applications. One manufacturer that provides an extensive range of such products is Bosch; one of their latest models we feature here.
Bosch MIC IP Starlight 7100i Outdoor PTZ
This example of a robust PTZ IP camera is suitable for deployment in extreme outdoor locations that require reliable 24-hour security monitoring. It features a range of advanced imaging technologies as well as Bosch’s Intelligent Video Analytics.
Featuring a 1/2″ 2MP CMOS sensor and a 6.6-198mm motorized zoom lens, the camera captures video at resolutions up to 1920 x 1080 at 60 fps in a 58.3 to 2.1° field of view. The camera delivers color video in lighting conditions as low as 0.0047 lux and uses an automatic IR cut filter to switch from color to B&W for day/night functionality.
An integrated high-speed pan/tilt system with an anti-backlash drivetrain provides 360° continuous panning and 290° tilting at up to 120° and 90° per second, respectively. Housed in an IP68- and IK10-rated enclosure and equipped with a window defroster, the camera is suitable for use in vandal-prone outdoor locations. Audio input and output ports allow for two-way talk while an SD card slot enables onboard storage of footage. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
Solutions for New and Legacy Product Sources and Supply
@YellowsBestLtd seeks out new products and legacy equipment spares to assist with our aim of “Keeping Customers Operational“. Recent enquiries have included not only CCTV cameras, but also the supplying refurbished and surplus stocks of equipment cards, as well as built-to-order cables and connectors to suit exact requirements. Please get in touch to discuss any solutions or services requirements that you have; we look forward to hearing from you!
For many years, the ‘Dynanet’ family of PDH Transmission telecoms products have well served Public Operator and Private Network Customers across the Telecoms, Utilities, Transport and Public Safety markets with high availability mission critical infrastructure, and indeed some networks are continuing to provide good operational service.
They were first introduced by Nokia over 20 years ago, and were continued in recent years by DNWP. Production of the majority of the product range was ceased in 2019.
Spare parts for continued operational service
@YellowsBestLtd satisfies world-wide customer product sourcing requirements for current and ‘legacy’ equipment technologies from a wide range of Original Equipment Manufacturers (O.E.M.s).
In particular, we are able to supply products from the ‘Dynanet’ range, given that we have a significant amount of refurbished and surplus equipment items in stock for immediate delivery. Hence there continues to be spares support for current and even increased deployed networks.
Comprehensive Stocklist of ‘Dynanet’ Spares
Whereas the ‘Dynanet’ family contained a wide range of products produced and supplied over many years, some of which are relatively obscure and unlikely to be needed, there are a number of core items that have proved to be always in demand by Customers. Consequently, we have endeavoured to create a comprehensive stock list, containing part numbers, product codes and descriptions and images which is presented here, and would welcome any enquiries you have for spares requirements that we can fulfil. If however, you are seeking something more unusual, then please let us know as we can usually assist. We look forward to hearing from you.
The XMP1 product is multi-service access / transmission node equipment capable of PDH data rates of 8Kbps to 34Mbps and SDH STM-1 or STM-4. Originally manufactured by Marconi, the range was taken over in later years by Keymile and Bosch before being discontinued.
The system is still in service, customers include Utilities and Transport organisations, and typically deployed as a terminal multiplexer or as an ADM (Add-Drop-Mux). It can provide point to point or leased line in a corporate network for POTS, data, LAN, IDSN etc.
The building blocks of the system are the central unit which provides control and management, the SDH cards for STM-1 and STM-4 aggregation and the line units which provide uplink in the form of E1, E3 or SHDSL which can be copper or optical. 8 and 16 Slot versions were available as well as an SL (slimline) variant.
Spares and Repairs for continued long-term operation and maintenance
Whereas these products are no longer manufactured, @YellowsBestLtd is able to supply a limited amount of spare parts and/or offer repair services in order to aid customers in keeping their networks operational. There follows a non-exhaustive list of typical parts that can be supplied, we would be very pleased to receive specific requests for items that are needed.
A205HAT00080AAB
05HAT00080AAB
XMP (MK2) POWER SUPPLY 48/60V
AN00059057
62.7026.353.00-A001
PORT HDB3 (2)
AN00098224
62.7040.405.00-A001
MODUL V.11
AN00114784
62.7040.303.00-A001
ETHERNET ADAPTER
AN00118106
62.7006.430.00-A002
POWER SUPPLY 48-60V
A2AN00034165
Cable Clamp
A2AN00086011
CABLE CLAMP PANEL 1 HU
A2AN00086013
PATCH PANEL V.11
A2AN00102460
CCU-CENTRAL UNIT CC WITH QD2
A2AN00102463
SUBRACK XMP1 (16)
A2AN00109256
FRONTPANEL BLUE
A2AN00116240
Connecting Cable 2m
A2AN00214510
Connecting Cable Central Unit Protection
A2AN00214511
Ethernet Cable (5m)
A2AN0022815
DSK MODULAR
A2AN00274356
Input/Output Alarm Cable(2 O/P,3 I/P)
A2AN00276278
Connecting Cable 6m (Port HDB3) coax
A2AN00276281
Connecting Cable 20m (Port HDB2) coax
A2AN0034165
Cable Clamp
A2AN00702802
Mounting element
A205HAN00499AAC
XMP1-SL CROSS CONNECT
XMP1 spares
@YellowsBestLtd our mission is in “Keeping Customers Operational”. We’re always keen to enhance our range of #business services, increase the #enterprise infrastructure we support and expand our mix of #sustainable solutions we offer for supply and maintenance of new and legacy #technologies and products for our customers.
Please help us understand your management services or solutions requirements, whether you’re implementing new systems or maintaining existing infrastructure networks to serve your operational business needs.
The Sagem ADR product range was an SDH Add-drop Multiplexer (ADM) product family designed as a flexible platform for Metro Access and Metro Core, backhauling, microwave radio and Utilities infrastructure networks.
ADR155c
The family included ADR155c and ADR622, STM-1/STM-4 ADM, and ADR2500 ‘eXtra’ and ADR10000, STM-16/STM-64 multi-service NG SDH. This range was managed by the IONOS Network Management System (NMS) which also managed Sagem Primary Multiplexers, PDH and SDH microwave radio and DWDM systems.
ADR622
The ADR family was deployed worldwide with more than 60,000 units over 5 years.
Comprehensive Functionality
ADR2500 ‘eXtra’
The ADR platform offers a large variety of interfaces from E1 and E3, Fast Ethernet and Gigabit Ethernet, enabling the provision of a wide range of end Customer services. Transmission protection for guaranteed QoS is provided with SNCP, MSP, MS-SPRing as well as common unit and tributary protection.
The STM-16 network units can be used for multi STM-1 or STM-4 and local-cross connect functionality thanks to a fully non-blocking switch matrix.
The modular and flexible housing provided by the ADR155c (2U), ADR622 (6U) and ADR2500 ‘eXtra’ (14U) 19” and ETSI subracks provide a flexible mix of office, street cabinet and equipment room deployment.
ADR10000
Continuing to provide operational service
The ADR family of SDH products continues to provide operational service with various global Operator, Utilities and Transport companies.
@YellowsBestLtd supports requirements to maintain these networks by supplying various spare part items from refurbished and surplus stocks in perfect working order.
There follows a list of the main elements that are typically provided, though other items can be provided. Please let us know of any specific requirements you may have. We look forward to being of assistance.
The ‘Dynanet’ family of PDH Transmission telecoms products were first introduced by Nokia over 20 years ago, and were continued in recent years by DNWP. These have well served Public Operator and Private Network Customers across the Telecoms, Utilities, Transport and Public Safety markets with high availability mission critical infrastructure, and indeed some networks are continuing to provide good operational service.
Production of the majority of the product range was ceased in 2019. However, some products remain available to order, notably the DCN Adapter C4.0, related management software products and other items such as the TPS64, NDUE and Euro / SMB connectors.
Nokia DCN Adapter
Continued Supply of Spare Parts – Surplus and Refurbished Items
@YellowsBestLtd satisfies world-wide customer product sourcing requirements for current and ‘legacy’ equipment technologies from a wide range of Original Equipment Manufacturers (O.E.M.s).
For the ‘Dynanet’ range, we should be able to continue to supply refurbished and surplus equipment for as long as required, but the effect of the discontinuation of production is squeezing the availability of remaining stocks, with a consequential impact on pricing.
Hence, for those customers continuing to maintain their networks, it is recommended to consider purchasing spare parts whilst there is still availability. Please get in touch to advise what you need!
From time-to-time, hardware elements within infrastructure systems fail, and repair services are required for a diverse range of parts procured over a considerable period of time, from a multitude of Original Equipment Manufacturers (O.E.M.s), some of which no longer exist.
YellowsBest is able to provide a comprehensive repairs management service for both new and old equipment items, all to a standard equivalent to the original working condition and with warranted operation.
Component Level Repairs Example: SES Displayboards
An example of the type of equipment that we are often asked to assist with is the MS1 Matrix LED ‘displayboards’ produced by SES and used for professional signage applications.
LED ‘displayboards’
Typical issues to deal with are Faulty LEDs, damaged capacitors and broken sockets, which have occurred in operational use over time. Adding to this are problems stemming from heat gun damage and resoldering caused by previous ‘user fixes’. But these issues are addressable and the boards restored to full working condition.
Other types of equipment for repair services include Telecommunications products, power supplies and CCTV cameras.

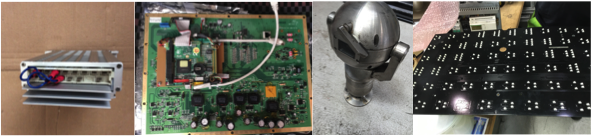

Typical Items for Repair Services
Reduce – Reuse – Recycle
@YellowsBestLtd helps Customers with their operational needs, and one aspect is to #Reduce the demand for avoidable whole-scale replacements through a combination of #Reuse of refurbished spares and repair of system elements. When removal and disposal of no-longer serviceable infrastructure parts is necessary, we can also assist with the resale and #Recycle for ‘value recovery’ of valuable materials.
Most customers have implemented their private network infrastructure systems over a number of years, and for many their operational requirements have not changed. Consequently, it makes more sense both financially and environmentally to maintain these systems rather than embark on complete change-outs. We can assist by supplying critical and hard-to-find spare parts and hardware repair services, even when the systems have been declared ‘obsolete’ (i.e. no longer in production) by the O.E.M. We look forward to hearing from you.
Phased Discontinuation of Production – 31st May 2019 – 31st January 2020
The production of the ‘Dynanet’ family of PDH Transmission telecoms products, first introduced by Nokia over 20 years ago, and continued in recent years by DNWP, is finally being ended.
This product range has well served Public Operator and Private Network Customers across the Telecoms, Utilities, Transport and Public Safety markets with high availability mission critical infrastructure, and indeed some networks are continuing to provide good operational service.
Essentially almost all the old equipment items, with a very few exceptions such as the TPS64, are being completely discontinued in a phased way according to these milestones, which have already commended:
31st May 2019 – DM8 Multiplexers, DF2-8 Optical Terminals, RPSA
31st October 2019 – DM2 Multiplexers, Subs/Exch & VF Cards, DN2 IU2, Service Terminals, V.28/V.11 DIU
31stJanuary 2020 – DB2, DN2 CU & BPU, G.703 & V.110, DIU, Ethernet I/F, Ring Gen, NDM 19” Subrack, NDA
@YellowsBestLtd satisfies customer product sourcing requirements for current and ‘legacy’ equipment technologies.
Should you wish to read the full ‘ramp-down’ notice and know more about obtaining equipment before it is no longer available, then please get in touch.
The UMUX platform provides carrier-grade reliable multi-service multiplexing and aggregation functions over copper and fibre networks. A variety of voice (POTS, FSX, FSO, ISDN) and data (e.g. G.703, V.11, V,24, V,35) interfaces, SHDSL and Ethernet (including PoE+ and EoS) services are available.
UMUX module range
The modular and flexible housing provided by the UMUX 1500 (8U, 21-slot) and UMUX 1200 (4U, 8-slot) 19” subracks provide the perfect solution for all applications and locations, offering redundant controller and power supplies.
‘Legacy’ telecoms history
The UMUX SDH product portfolio was originally launched 1991 by Ascom, which subsequently became Keymile.
In 2003, by when 70,000 units had been deployed worldwide, the ‘enhanced’ UMUX multiservice access platform was introduced, offering the delivery of ATM, TDM and IP based services from the same platform, with support for IP/Ethernet, ADSL, VoDSL and G.SHDL.
Keymile was sold to ABB in 2017 when the UMUX range was discontinued, and then was acquired in 2019 by DZS.
Continuing to provide operational service
The UMUX, together with the UNEM network management system and ‘sister’ LINERUNNER and MILEGATE products, continues to provide operational service with various global Operator, Utilities and Transport companies.
@YellowsBestLtd supports requirements to maintain these networks by supplying various spare part items from refurbished and surplus stocks in perfect working order.
There follows a list of the main elements that are typically provided, though other items can be provided. Please let us know of any specific requirements you may have. We look forward to being of assistance.
The Nokia ‘Dynanet’ family of PDH Transmission telecoms products has served customers well for the last 20+ years, and indeed some networks continue providing good operational service.
Dynanet Subtrack
@YellowsBestLtd has supported requirements to maintain these networks by supplying various spare part items from refurbished and surplus stocks in perfectly working order.
However, demand has recently reduced and warehouse space is needed, so now the time has come to recycle / dispose of a large proportion of the remaining equipment. Consequently, there remains a short-term opportunity to obtain any items still required to maintain existing deployed infrastructure, before the products are gone.
Here is a stock list of the main items currently available, though there may be a few additional parts that can be supplied. Hence, please check and if you do have any requirements, please let us know – before it’s too late! We look forward to hearing from you.
Part Number
Description
24204
TPSO H/W Module
CC 24002
DB2 Branching Unit, B2 2×2 Mb/s 75 ohm
CC 24011
DB2 2 Mb/s Switching Unit, X2 75 ohm
CC 24101
DN2 Interface Unit (IU2) 2×2 Mb/s 75 ohm
CC 24111
DN2 Control Unit (CU) 75 ohm
CF 24186
DN2 19″ Subrack
CF 24186.09
DN2 Subrack 19″, grey-L91 EMC
CG 24170
DN2 Bus Power Unit (BPU)
CG 24171
Extended DN2 Bus Power Unit (EBPU)
CU 24013
Data Interface Unit (DIU) 2M, nx64k: G.703/704, 75 ohm
T30506.09
17-slot DYNANET Subrack
T30851.02
Subrack Power Adapter (SPA)
T37870.01
NDM ACM2 19in 17-slot subrack
T37871.01
NDM DN2 19″ 17-Slot Subrack
T37882.01
NDM DC Unit (NDUe)
T37882.02
NDM DC Unit (NDUe)
T37885.01
NDM Ring Generator
T37889.01
NDM Backup Unit (NBU)
T65520.01
ACL2 RM DC Power Gen
T65580.01
ACL2i PF GEN Line Terminal Card
TA 21513
Optical Line Terminal Repeater 2-8 M, 1300 nm LED MM/SM
TA 21516
Optical Line Terminal Repeater 2-8 M, 1300 nm LASER SM
TC 21101
DM34 Mux Card
TC 21301
DM8 Multiplex Equipment, 75 ohm
TC 21705
Supervisory Substation
TC 21710.01
TMS Adapter
TG 21261
Ring Generator 25HZ 15W
TU 21122.5
Data Interface Unit (DIU) 48..64k V.11 10ch
TU 21124
Data Interface Unit (DIU) NX64k V.11/V.35/X.21 2CH
