Vero Trivolt PSU – ‘product of the month’

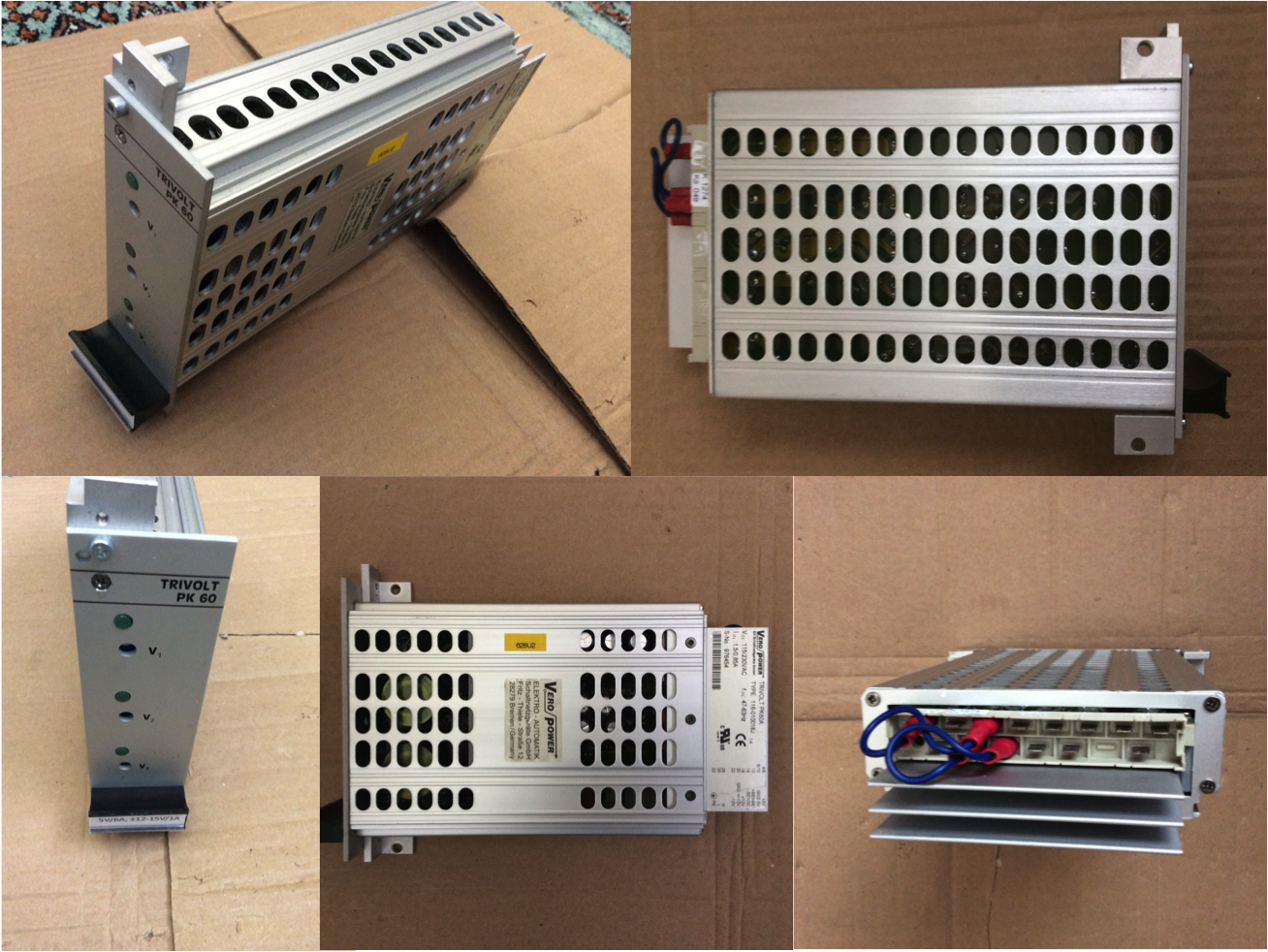

TRIVOLT AC/DC-converter Power Supply Unit

Manufacturer: Vero

Model Number: PK60A

Product Code: 116.010018J

Description

60 to 120 Watt switched mode AC/DC plug-in power supply with three outputs in 3 U Eurocassettes for use in 19” subracks to IEC 60297-3.

  • 3 high stability outputs, all adjustable
  • √  Safety approvals to UL, cUL and EN 60950
  • CE marked for compliance to EMC and Low Voltage Directives
  • SENSE-operation (5V output)
  • Overvoltage protection (OVP)
  • Powerfail signal optional
  • No-load and short circuit proof
  • Coded H15 connector
  • VERO standardised pinning

Specifications

  • nom. height: 3U
  • nom. width: 8H
  • nom. depth : 160mm
  • output power: 60W
  • voltage outputs:
    • V1: 5V/6A
    • V2: -12-15V/1A
    • V3: -12-15V/1A

To purchase, contact us.
